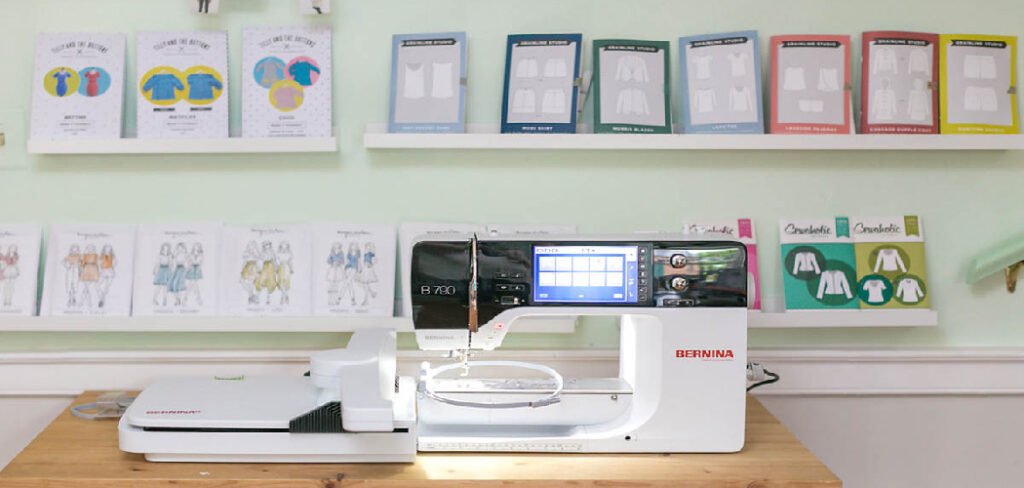

How to Make a Sewing Table Insert

If you have ever struggled with fabric dragging over the edge of your sewing machine, you know how frustrating it can be. A flat, level workspace isn’t just a convenience—it’s a game-changer for accuracy and comfort. Creating a custom How to Make a Sewing Table Insertensures your machine sits flush with your table, allowing fabric to glide smoothly and preventing puckering or uneven stitching. This guide will walk you through a simple, beginner-friendly approach to crafting your own insert, giving you a professional-grade workspace without the cost of a pre-made solution.

With a few basic tools, patience, and careful measurements, you’ll transform your sewing experience completely.

The Benefits of a Flatbed Sewing Surface

A sewing table insert provides a level, continuous surface, eliminating the drop-off between your machine bed and table. This prevents fabric from dragging, reducing strain on your hands and wrists. Large projects, such as quilts or curtains, become easier to manage because the material moves effortlessly across the surface. Visibility improves, making it simpler to follow patterns or align seams accurately. A flatbed setup also enhances stitch consistency, as the machine doesn’t have to compensate for uneven surfaces. Whether you’re a casual hobbyist or a serious quilter, the insert elevates your comfort, efficiency, and precision.

Tools and Materials You’ll Need

• Acrylic sheet (1/4 inch thick for stability and clarity)
• Jigsaw with fine-tooth blades for plastics
• Power drill with drill bits for starter holes
• Router (optional for edge finishing)
• Cardboard for template creation
• Masking tape or painter’s tape to protect surfaces
• Permanent marker for tracing
• Measuring tape and ruler for precise dimensions
• Sandpaper (120–400 grit)
• Safety goggles
• Clamps to secure materials
• Soft cloth for final cleaning

Step-by-Step Guide: How to Make a Sewing Table Insert

Step 1: Measuring Your Workspace and Machine

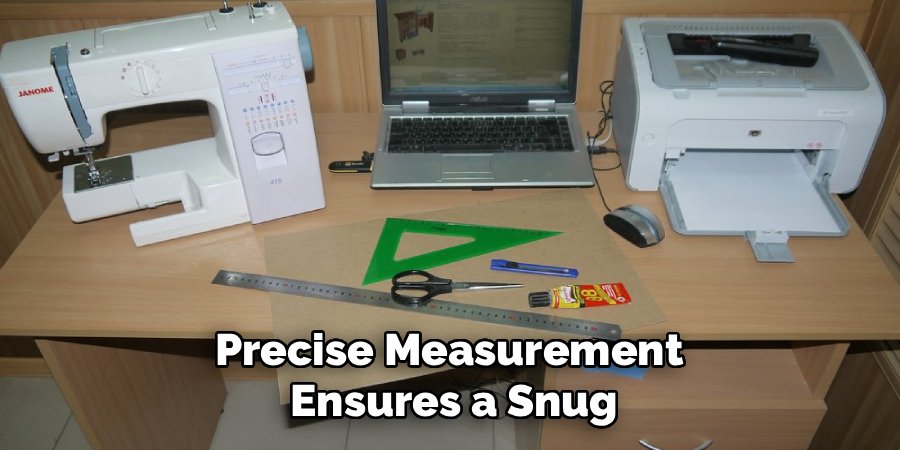

Accurate measurements are the foundation of a successful insert. Begin by clearing your sewing table and removing any accessories. Measure the opening where your machine will sit, noting multiple points to account for slight irregularities. Record the dimensions of your machine’s base or free arm. Precise measurement ensures a snug, secure fit without gaps that could snag fabric. For curved edges, estimate the radius carefully. Double-check your numbers to avoid mistakes, as excess material can be sanded away later, but insufficient material can’t be replaced.

Patience at this stage prevents wasted acrylic and frustration during assembly.

Step 2: Creating a Cardboard Template

Before cutting your acrylic, construct a template from stiff cardboard. Cut the cardboard to match the table opening and test the fit. Mark the area where the machine protrudes, trimming gradually until the template fits around the machine with a small clearance, about one-eighth of an inch. This ensures the insert doesn’t rattle during use while still providing support. Take your time refining the template; it serves as the pattern for your acrylic, preventing costly mistakes and helping visualise the final fit.

Step 3: Transferring the Design to Acrylic

Place your cardboard template on the acrylic sheet, keeping the protective film on. Secure it with painter’s tape and trace the outer and inner cut lines with a fine-tip permanent marker. Cover the traced lines with additional masking tape to reduce chipping during cutting. Ensure the lines are clearly visible through the tape. This careful transfer sets up precise cuts, preserving both functionality and aesthetic quality.

Step 4: Cutting the Outer Shape

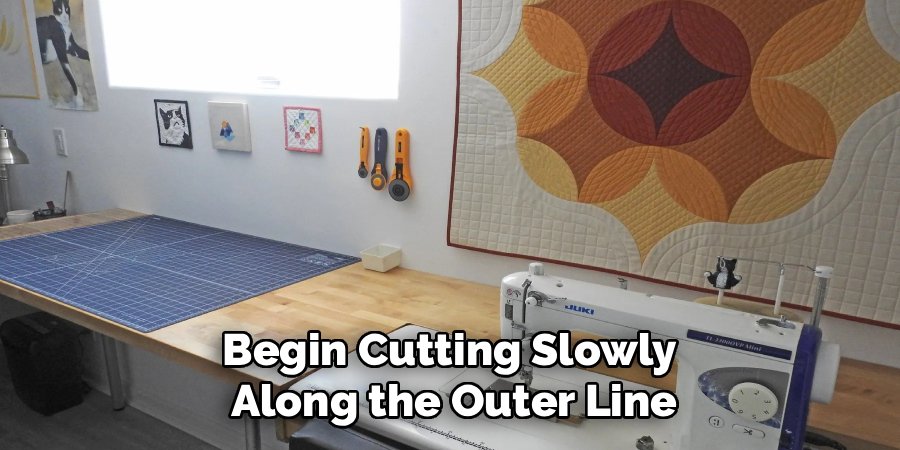

Clamp the acrylic sheet securely to a flat work surface. Fit a fine-tooth plastic-cutting jigsaw blade. Begin cutting slowly along the outer line, letting the blade guide the cut. Support the waste section to prevent snapping. Corners should be navigated gradually to avoid binding. Once the outer shape is cut, test-fit it into your table. If needed, lightly sand high spots to achieve a smooth, flush fit.

Step 5: Cutting the Inner Machine Opening

Drill a starter hole inside the area to be removed, avoiding the traced line. Insert the jigsaw blade into the hole and follow the inner perimeter carefully, particularly around tight curves near the needle plate. Keep the jigsaw base flat to minimise vibration. Proceed slowly to prevent cracking. Support the inner piece until the cut is complete, ensuring the acrylic frame remains intact.

Step 6: Sanding and Smoothing Edges

Smooth all cut edges with medium-grit sandpaper, then progress to finer grits, finishing with 400-grit if desired. Pay special attention to corners and inner curves, ensuring no sharp points remain. Sanding produces a polished, safe surface that won’t catch fabric. Optional: Use a router with a round-over bit on outer edges for a professional look.

Step 7: Final Fitting and Levelling

Remove the protective film. Place the insert in the table, checking alignment with the machine bed. Adjust height using clear rubber bumpers or tape shims if needed. Apply felt tape along inner edges to reduce vibration. Confirm the surface is flush, smooth, and free of gaps. Wipe down the acrylic with a soft cloth to remove dust and fingerprints. Your sewing surface is now ready for use.

Customization Tips

You can enhance your insert’s functionality with several simple modifications. Consider adding a printed ruler or grid beneath the acrylic for quick measurements. A frosted or matte finish can reduce glare from overhead lighting. Buffing the edges with a polishing compound improves clarity and aesthetics. For quilters, applying a “slider” sheet on top can make fabric glide even more smoothly. Each customisation allows the insert to better suit your specific workflow and creative style.

Common Mistakes to Avoid

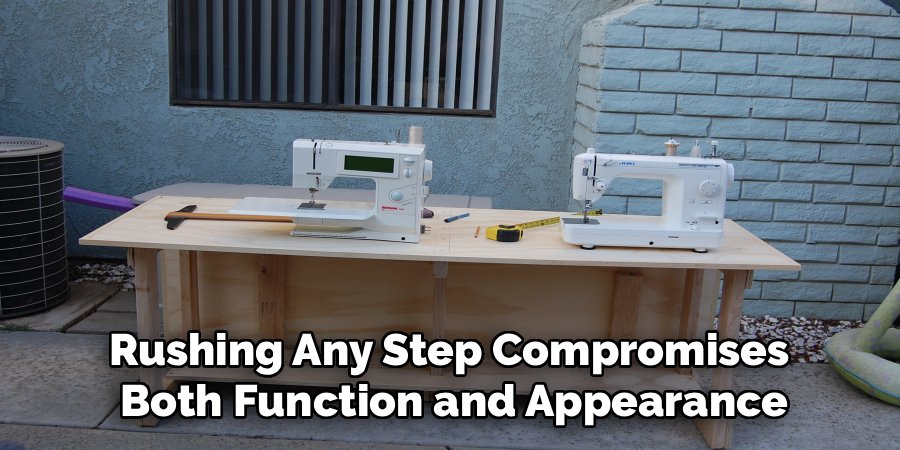

Removing protective film too early risks scratches. Cutting too quickly or using an incorrect blade can melt or crack acrylic. Failing to secure the sheet with clamps leads to uneven, chipped edges. Inaccurate measurements can cause a poor fit that requires re-cutting. Rushing any step compromises both function and appearance. Take your time and follow each stage methodically to avoid these pitfalls.

Frequently Asked Questions

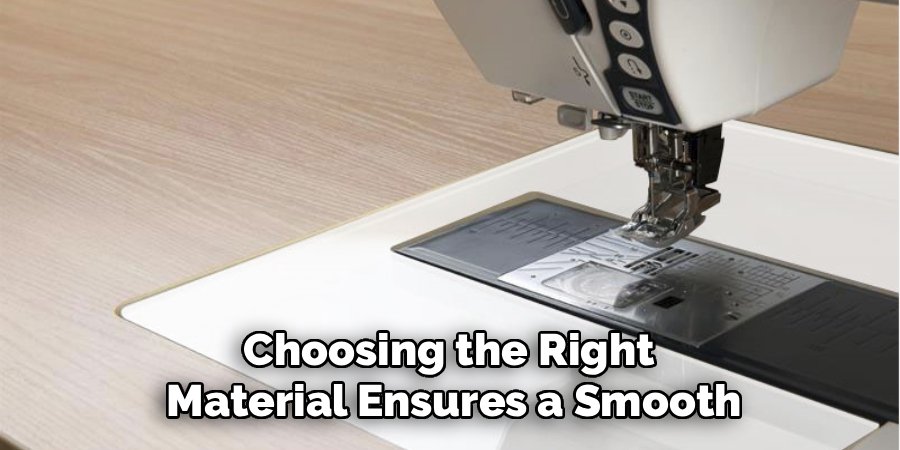

What is the Best Material for a Sewing Table Insert?

Cast acrylic, often called Plexiglass, is ideal due to its rigidity, optical clarity, and durability. It resists cracking during cutting better than extruded acrylic and supports heavy fabrics without flexing. Polycarbonate is an alternative, but scratches more easily. Thickness around 1/4 inch provides a stable surface. Choosing the right material ensures a smooth, long-lasting workspace.

Can I Use Wood Instead of Plastic?

Yes, wood or MDF can be used, though it has limitations. Wood is opaque and may require sealing to prevent snagging fabric. Acrylic offers a slick surface that allows materials to glide effortlessly. Wood can be sanded and painted, but acrylic generally produces a smoother, more professional finish. Consider your priorities—visibility, smoothness, and maintenance—when selecting the material.

How Do I Prevent Acrylic from Cracking While Cutting?

Ensure the acrylic is fully supported and clamped securely. Use a fine-tooth jigsaw blade and drill starter holes for interior cuts. Move the saw slowly to prevent melting or chipping. Keeping the protective film intact adds rigidity. Proper technique reduces cracking risk, ensuring clean, precise cuts.

My Insert Isn’t Flush; How Do I Fix It?

If the insert sits low, use clear rubber bumpers, felt pads, or tape shims on the underside. If it’s high, adjust the machine platform. Ensure the surface transitions smoothly at the needle plate. Even minor adjustments make a significant difference in function and comfort.

How Do I Maintain the Surface of My Workspace?

Avoid ammonia-based cleaners; use mild soap and water or a plastic-safe cleaner. Wipe with a microfiber cloth to prevent scratches. Small scratches can be polished with acrylic-specific compounds. Protect the surface from heat, and handle fabrics gently to maintain a smooth, clear finish over time.

Conclusion

How to make a sewing table insert is a project that instantly improves your sewing efficiency and comfort. By measuring carefully, crafting a template, cutting and sanding the acrylic, and finalising the fit, you create a professional, custom workspace. Your craftsmanship will shine every time someone admires your new piece. With a flat, level surface, you enjoy smoother fabric handling, less fatigue, and precise stitching.

• Measure twice, cut once
• Sand edges for safety
• Customise for your workflow
• Maintain the surface for longevity
  With these tips, your sewing table insert will be a durable, functional, and visually appealing addition to your creative space.
