How to Attach a Wood Table Top to a Metal Frame

Learning how to attach a wood table top to a metal frame is a practical and rewarding DIY project. Combining the natural warmth of wood with the strength and durability of metal creates a stylish, functional piece that can serve as a dining table, desk, or accent table.

Whether you are upcycling an old table or building one from scratch, this guide will help you achieve a professional-quality result. With careful preparation, the right tools, and proper techniques, you can secure your tabletop safely and ensure it remains stable for years. This project is approachable even for beginners, offering a satisfying blend of craftsmanship and creativity.

Benefits of Attaching a Wood Table Top to a Metal Frame

Pairing a wood tabletop with a metal frame offers several advantages. First, it creates a visually striking contrast, merging rustic textures with sleek industrial lines. This combination fits a wide range of interior styles, from modern lofts to cozy farmhouse settings.

In addition to aesthetics, the pairing is highly durable. Metal frames provide structural stability, supporting heavy loads without wobbling, while wood offers resilience and can be refinished if scratched or worn. This means your table is not only attractive but also long-lasting. Attaching the top yourself also gives you control over design, size, and finish, allowing for customization to perfectly match your home decor. Finally, this DIY approach is cost-effective and sustainable, extending the life of existing furniture components or materials.

Tools and Materials You’ll Need

Gathering all supplies before starting ensures a smooth process. You’ll need:

• A solid wood table top, pre-made or custom
• Sandpaper (120, 180, 220 grit)
• Wood stain or paint of your choice
• Polyurethane or wood sealant
• Metal table frame or legs
• Metal primer and optional metal paint
• Drill with appropriate bits
• Figure-8 fasteners, Z-clips, or expansion slot clips
• Wood screws (shorter than tabletop thickness)
• Tape measure and pencil or marker
• Clamps
• Safety glasses and gloves
• Clean rags or a tack cloth

Step-by-Step Guide: How to Attach a Wood Table Top to a Metal Frame

Step 1: Prepare and Finish the Wood Table Top

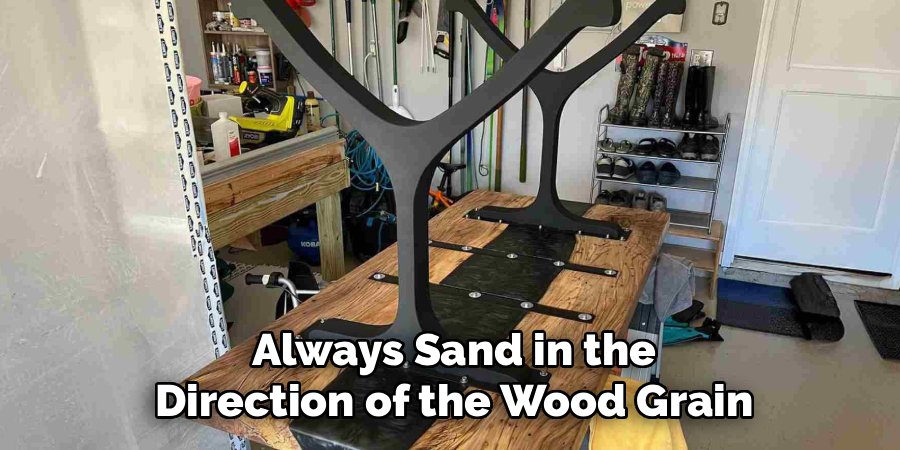

Start by sanding the tabletop to achieve a smooth surface. Use 120-grit sandpaper to remove rough spots, then progress to 180 and 220 grits for a polished finish. Always sand in the direction of the wood grain to avoid scratches. After sanding, clean the surface thoroughly with a tack cloth or damp rag to remove dust. This ensures stain or paint adheres evenly.

Next, apply your chosen wood stain or paint, following the manufacturer’s instructions. Use a clean rag or foam brush for the stain, wiping off excess after the recommended time, or apply primer before painting. Allow each coat to dry completely. Finally, protect the surface with a polyurethane or sealant finish, applying multiple thin coats and lightly sanding between each for a professional, long-lasting result. A well-prepared tabletop highlights the natural beauty of the wood and provides a durable foundation for assembly.

Step 2: Prepare the Metal Frame

While the tabletop finishes drying, prepare the metal frame. If the frame is new and finished, cleaning it with a degreaser or mild detergent is sufficient. For raw or old metal, remove rust and grease using a wire brush or sandpaper. Apply a metal primer to prevent corrosion and ensure paint adhesion. If desired, add a coat of metal paint after the primer dries, using thin, even layers to avoid drips. Spray paint is often preferred for smooth results. Proper preparation improves durability, appearance, and ensures a professional finish, forming a stable base for the tabletop.

Step 3: Measure and Mark Attachment Points

Place the tabletop upside down on a soft surface to prevent scratches. Center the metal frame on the inverted wood top, ensuring even overhang on all sides. Use a tape measure to verify alignment and mark the locations of pre-drilled holes or fastener points with a pencil. If the frame lacks pre-drilled holes, space marks every 12 to 18 inches for stability. Accurately marking these points ensures the tabletop is attached evenly, prevents wobbling, and provides a reliable reference for drilling pilot holes, contributing to a stable and well-aligned finished table.

Step 4: Select Fasteners that Allow Wood Movement

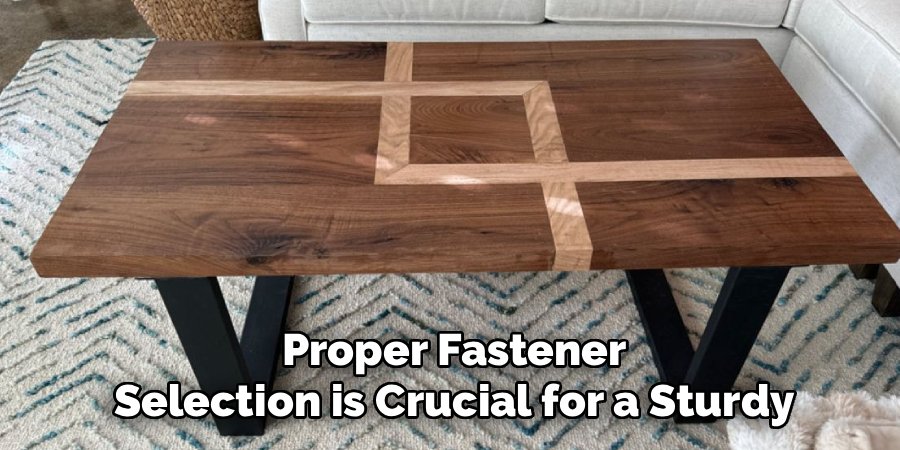

Wood naturally expands and contracts with humidity and temperature changes. To prevent cracks or warping, use fasteners that accommodate this movement. Options include Figure-8 fasteners, Z-clips, or expansion slot clips. For Figure-8 fasteners, recess one loop into the wood and screw the other to the metal frame. This method secures the tabletop while allowing it to “breathe,” ensuring longevity. Proper fastener selection is crucial for a sturdy and durable attachment, preventing damage over time and maintaining a professional appearance.

Step 5: Drill Pilot Holes

Using a drill bit slightly smaller than your screws, carefully drill pilot holes at each marked attachment point. Depth should be limited to avoid piercing through the tabletop; wrapping tape around the drill bit is an effective guide. Pilot holes prevent splitting and make driving screws easier. Once all holes are drilled, align your fasteners and prepare for attachment. Precision at this stage ensures the tabletop sits securely on the frame and maintains perfect alignment, essential for both aesthetics and stability.

Step 6: Attach the Table Top

Position Figure-8 fasteners in their recesses. Drive a wood screw through the fastener into the tabletop without overtightening. Then swivel the other loop over the metal frame, securing it with screws or self-tapping hardware. Work methodically across all points, checking alignment as you go. The tabletop should be firmly held while still able to expand or contract naturally. This step transforms your prepped wood and metal into a cohesive table, combining functionality, durability, and visual appeal.

Step 7: Final Checks and Finishing Touches

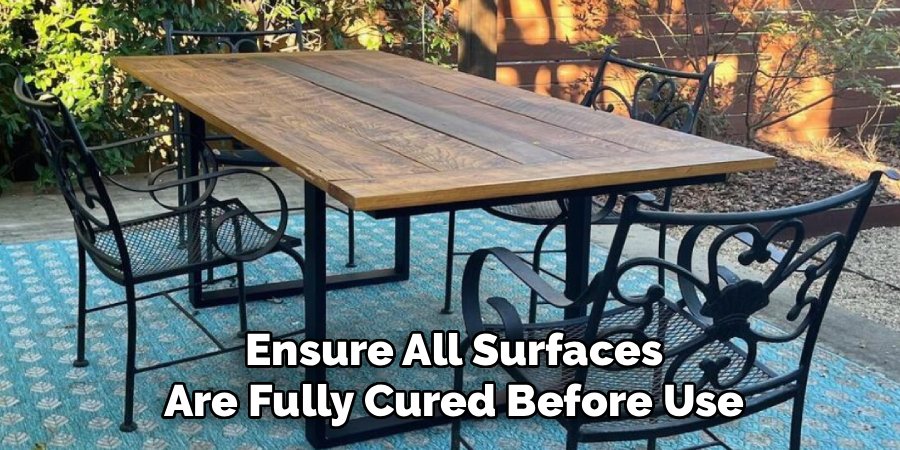

Once all fasteners are secured, inspect the table for levelness and stability. Place it upright and adjust as needed, using felt pads under legs if necessary. Wipe away dust, fingerprints, or minor debris. If desired, touch up any exposed wood or metal edges with stain or paint. Ensure all surfaces are fully cured before use. These finishing touches provide a polished look, prolong the table’s life, and showcase your craftsmanship, resulting in a piece ready for daily use.

Customization Tips for Attaching a Wood Table Top to a Metal Frame

Personalization enhances the uniqueness of your project. Experiment with different wood finishes, such as a distressed or reclaimed look, to create character. Consider inlays or contrasting wood species for visual interest. On the metal side, powder coating or bold paint colors can make a statement. Exposed welds or raw metal finishes contribute to industrial charm. Edge treatments, like a waterfall or beveled edge, add sophistication. You can also combine materials, like embedding concrete or resin accents, to create a one-of-a-kind tabletop. Small adjustments, like the overhang or rounded corners, allow customization for both aesthetics and function.

Common Mistakes to Avoid

Some errors can compromise your table’s quality. Avoid skipping sanding and surface preparation, as this leads to rough finishes and poor adhesion. Do not attach the top with screws that restrict wood movement; always use fasteners that allow expansion. Rushing stain, paint, or sealant application results in streaks, tackiness, or uneven coverage. Failing to measure and mark accurately can cause misaligned tops, uneven overhang, and instability. Finally, use screws of appropriate length—too long can puncture the tabletop. Awareness of these pitfalls ensures a strong, durable, and visually pleasing table.

Frequently Asked Questions

What is the best type of wood for a table top?

Hardwoods such as oak, maple, and walnut are preferred for durability and beautiful grain. Oak is strong and resistant to scratches, making it ideal for high-use tables. Maple offers a lighter look and smooth surface, while walnut provides rich color and elegance. Softwoods like pine are more affordable but dent easily, so they require additional protective sealant. Your choice should consider aesthetics, durability, and budget. A properly finished hardwood top will last for decades and can be refinished if necessary.

How do I ensure the metal frame is perfectly level?

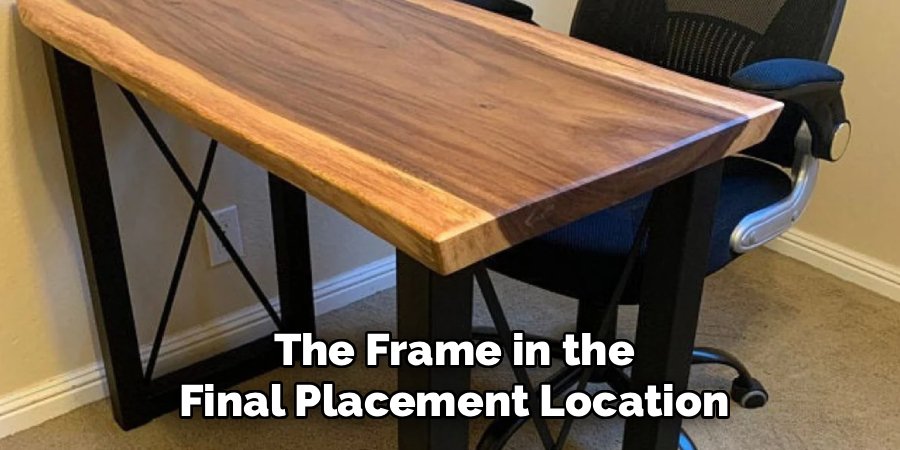

Place the frame on a flat surface and use a carpenter’s level to check both length and width. Adjustable feet help correct minor unevenness, while felt pads can stabilize short legs. Always check the frame in the final placement location, as floors may not be perfectly level. Ensuring a level frame prevents wobbling, uneven stress on the tabletop, and enhances stability and usability.

Can I use an old wooden door as a table top?

Yes, provided it is solid wood, not hollow-core. Remove all hardware, fill holes or imperfections with wood filler, and sand thoroughly. Strip old paint or finish before applying stain or paint. Panel doors require attention to joints to allow movement. Seal the surface with polyurethane for durability. With preparation, an old door can become a distinctive, character-filled table top.

How do I maintain and clean my table?

Use a soft, damp cloth for daily cleaning and mild soap for sticky messes. Dry surfaces thoroughly afterward. Avoid harsh chemicals or abrasive sponges. Protect surfaces with coasters and trivets. Over time, minor wear can be addressed by lightly sanding and reapplying a protective finish, restoring durability and appearance. Regular care prolongs the table’s life and maintains its aesthetic appeal.

How do I calculate the right overhang for my table top?

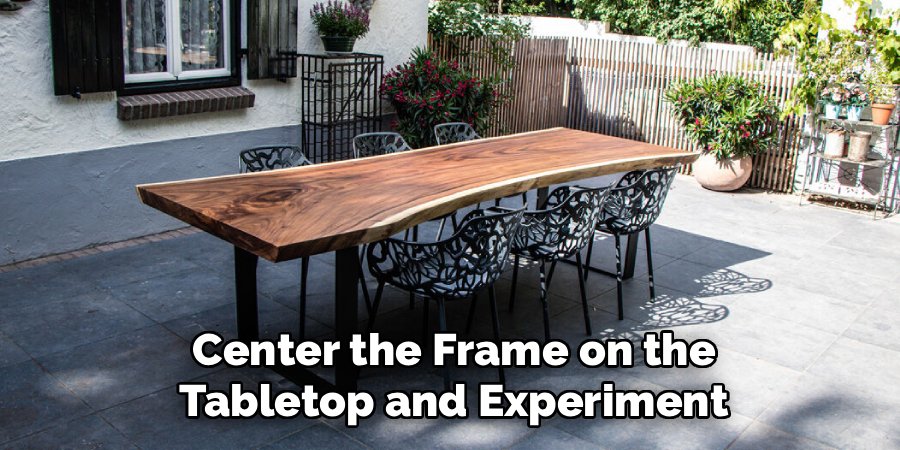

For dining tables, side overhangs of 10–14 inches provide legroom, and 4–8 inches for ends ensures balance. Coffee or console tables allow smaller overhangs of 2–4 inches. Center the frame on the tabletop and experiment visually, measuring both sides to ensure proportionality. Proper overhang contributes to comfort, usability, and visual harmony.

Conclusion

Mastering how to attach a wood table top to a metal frame allows you to create a custom, durable, and stylish piece of furniture. By carefully preparing the wood and metal, selecting appropriate fasteners, and following precise measurements, you ensure a stable and professional result. Your craftsmanship will shine every time someone admires your new piece.

Key takeaways include:

• Prepare and finish all surfaces before assembly
• Use fasteners that allow for wood movement
• Measure and mark carefully for perfect alignment
• Apply finishes in thin, even coats for durability

By combining patience, attention to detail, and creativity, you’ve built a table that is not only functional but also a reflection of your personal style, ready to enhance your living space for years to come.
